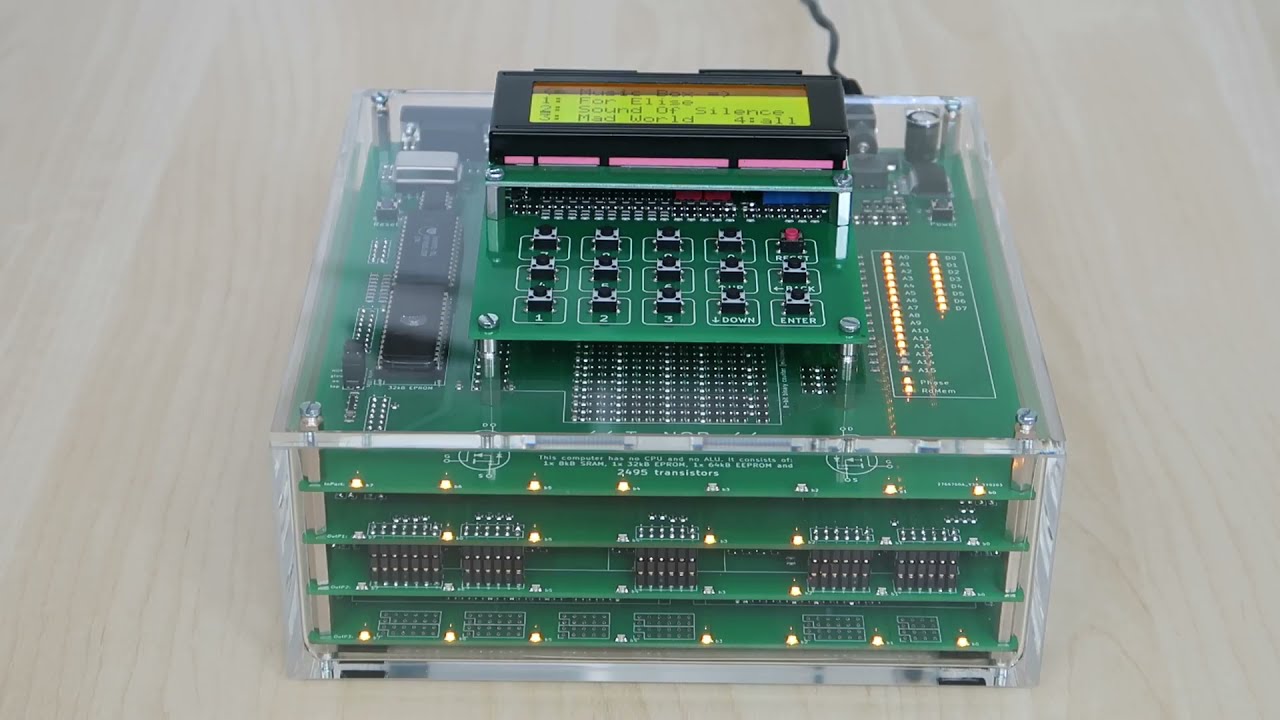

TraNOR's DIY Transistor Computer Has a CPU Design Containing 2,495 Discrete Transistors

I found this interesting non-CPU computer by Dennis Kuschel some time ago. I especially like this racing game (CarDriver) on a small display. Text program and source codes (ASM) are available.


Some part of the code for the road (CC-BY-SA)

;1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890
lcdline1    DB  "   F     /              A  F   D------              A   F  /             A F      F  /           A F", "   F     /         "
lcdline2    DB  " F    F /       D-E      B----C           D----E     B----C     D---E     A  F  D---C    D--E     A ", " F    F /       D-E"
lcdline3    DB  "-------C       /   A               D-----C  F   A              /   F A     B---C        / F  A     B", "-------C       /   "
lcdline4    DB  "              /  F  B-------------C  F  F    F   B------------C  F    A            D---C    F A     ", "              /  F "
            DB  0

TRACK_LENGTH  SET  100


;[A]    ;[B]    ;[C]    ;[D]    ;[E]    ;[F]    ;[G]   [H]
;.....  ;.....  ;.....  ;.....  ;.....  ;.....  ;..... .....
;#....  ;#....  ;....#  ;.....  ;.....  ;.###.  ;....# ##...
;.#...  ;.#...  ;...#.  ;.....  ;.....  ;#####  ;##..# ..#..
;..#..  ;..###  ;###..  ;..###  ;###..  ;.###.  ;.#### ####.
;...#.  ;.....  ;.....  ;.#...  ;...#.  ;..#..  ;.#### #####
;....#  ;.....  ;.....  ;#....  ;....#  ;..#..  ;.##.. ..##.
;.....  ;.....  ;.....  ;.....  ;.....  ;..#..  ;..... .....
;.....  ;.....  ;.....  ;.....  ;.....  ;.....  ;..... .....
